QUICK MOUNT LEG (X2) Part No: RLT600H

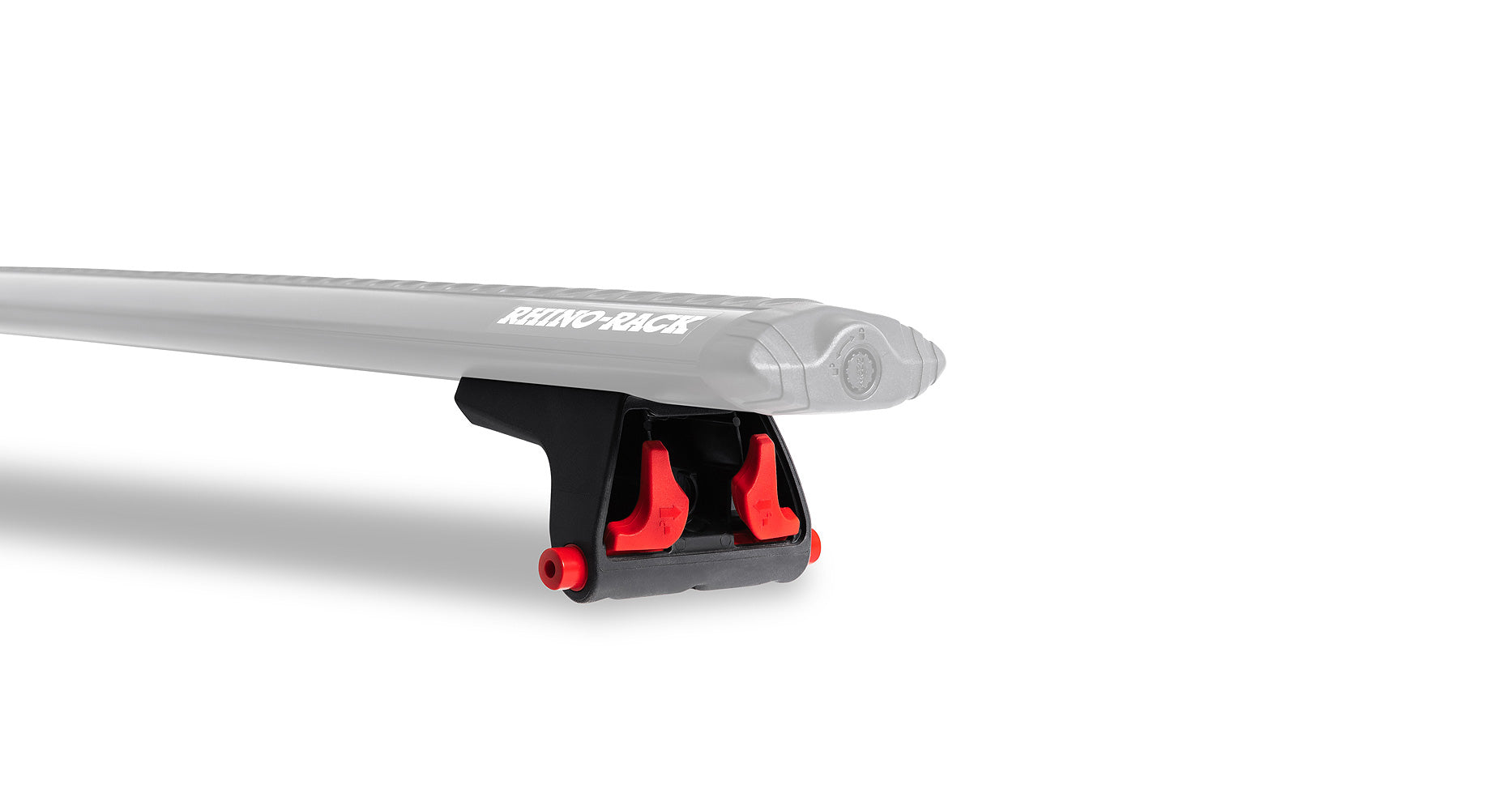

The Quick Mount RLT600 Leg Set is designed to be fitted onto Rhino-Rack tracks with the ability for one person to easily remove the roof racks when they are not required using a simple trigger locking system.

The RLT600H comes in a set of 2 or 4 (RLT600) leg sets to suit Vortex bars. Spacer kits and fitting kits are available for our Heavy Duty Bars and Pioneer systems.

Overview

• No tools required for installation and removal once system has been initially fitted
• Single person operation allows quick and easy attachment
• Ideal for low clearance
• Simple trigger locking system
• Lockable cover plate with Masterkey compatibility
• Base and leg allows for 33 degress of swivel to accommodate contoured surfaces
• Maximum load capacity across 2 bars is 100kg (always refer to the vehicle maximum load rating and use the lower of the two)
• Tested to AS1235:2000 (Australian), ISO11154:2006 (City Crash/International) standards
• Suit the Rhino-Rack Vortex bar

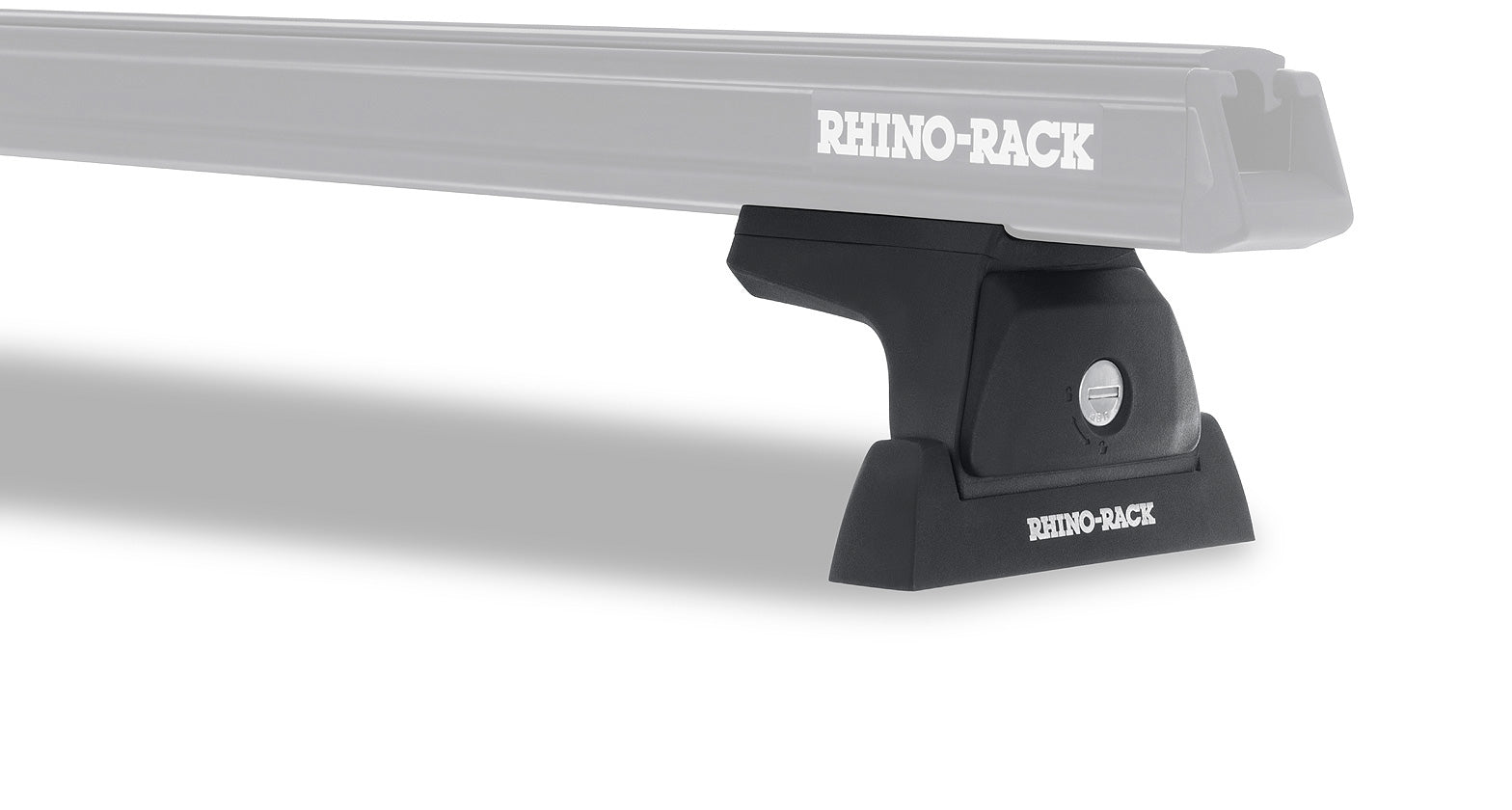

• Fitting kits are available to fit to Rhino-Rack Heavy Duty Bars and Pioneer systems.
• Lifetime Warranty
• The RLT600 legs will replace the RLT500 legs over time.
